DD-EFI Pro Dash
Megasquirt Digital Dash
12.3" Digital Dash PNP
94-04 Mustang
Build Time up to 6 weeks

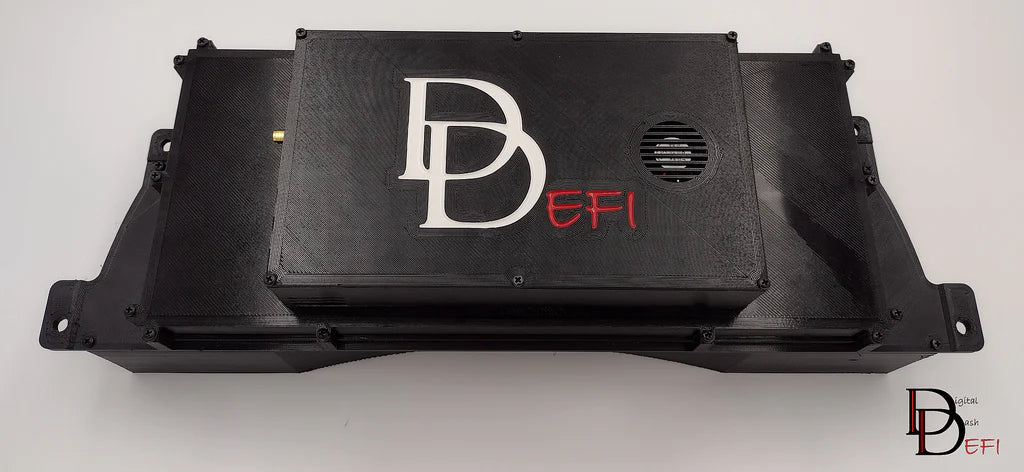

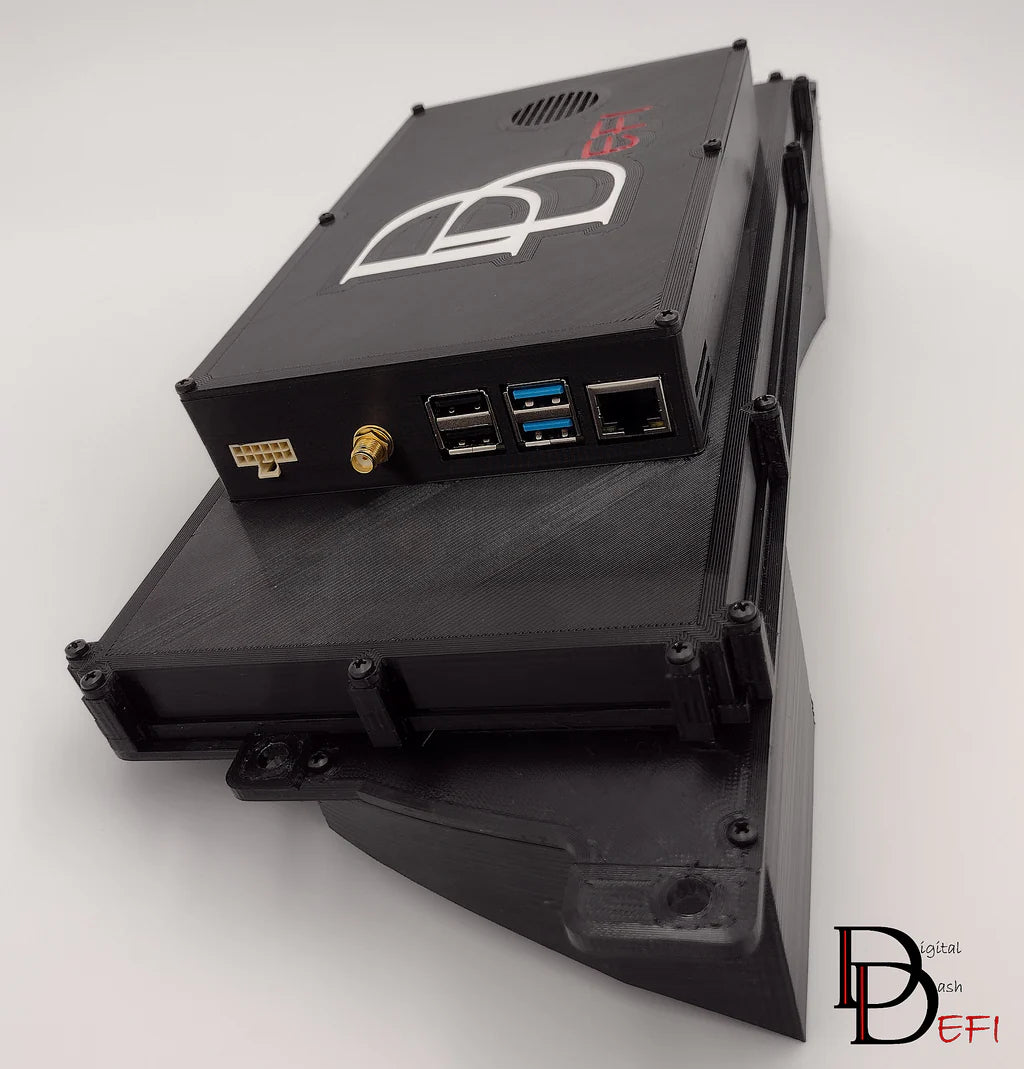

The DD-EFI 12.3" Widescreen Digital Dash is the 1st fully Plug-N-Play Digital Dash that can be installed using any Megasquirt equipped vehicle. The main focal point is the 12.3" Ultra Widescreen giving you a huge real estate for displaying your custom dashboard/gauges. This is an all-in-one enclosure for direct installation into your vehicle. All is needed is the MS ECU Tuning Cable, Power Connector, and GPS Antenna.
Internal I/O Module - provides (7) Digital Inputs, (5) Analog Inputs, (1) Fuel Level Input, (2) PWM Outputs. This provides the much needed additional inputs such as Turn Signals, High Beam, Oil Pressure, Fuel Level, etc.
CanBus Communication - I/O expansion via CanBus to the MS ECU providing 5 additional sensor inputs, dedicated fuel level input, 7 digital inputs, two speed inputs, and 2 PWM capable outputs. .
Built-in Internal GPS - provides a solution to commonly requested need for Speedometer, but also gaining the abilities for Latitude/Longitude, and Economy and Performance Fields.

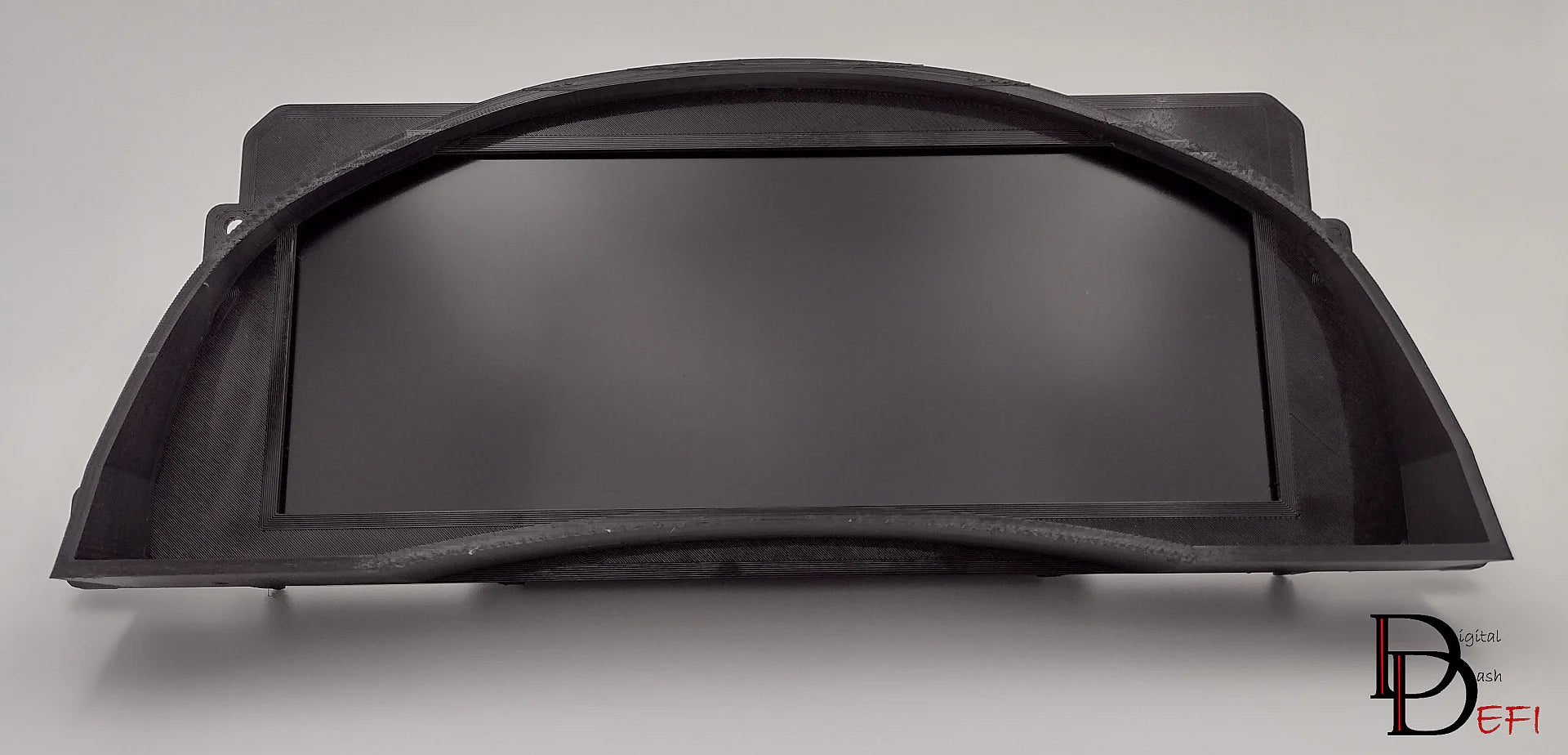

Custom 94-04 Mustang Bezel - This is a direct bolt-in Digital Dash for your 94-04 Mustang completely replaces the Factory Instrument Cluster. The bezel provides the factory look/feel, while modernizing your Mustang to the next level.

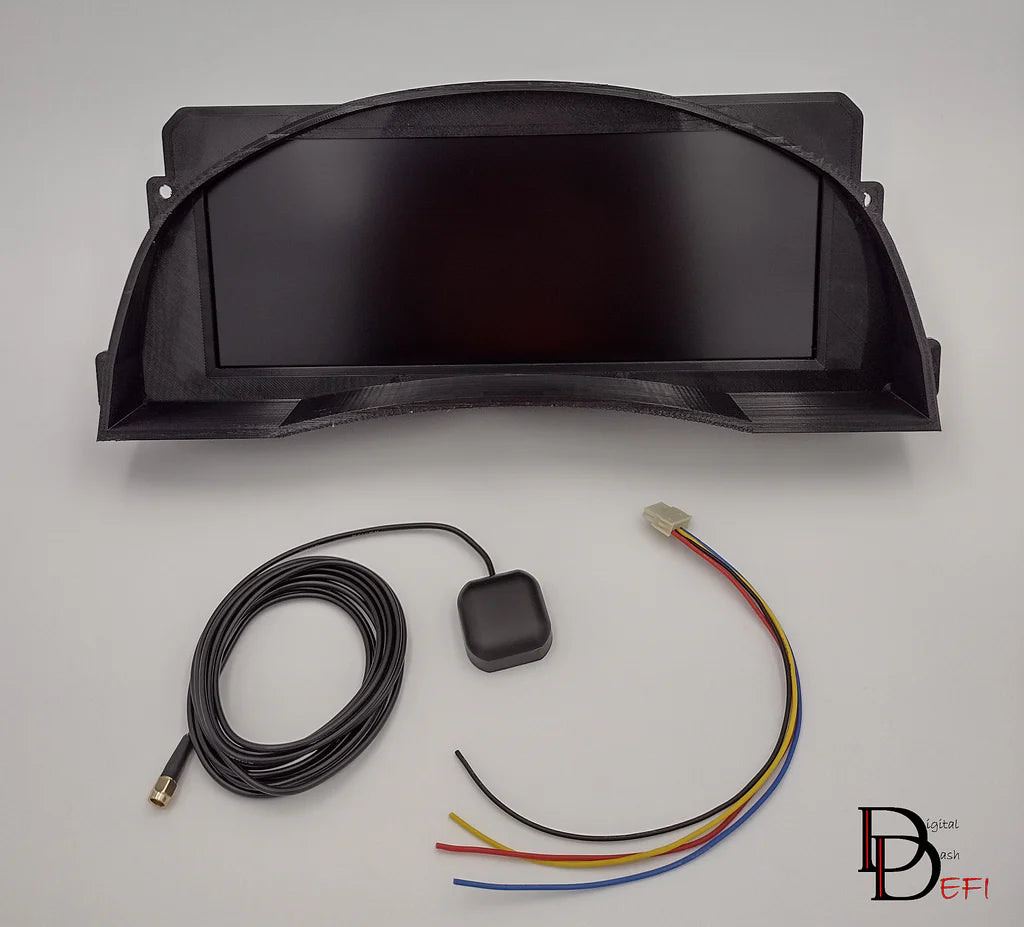

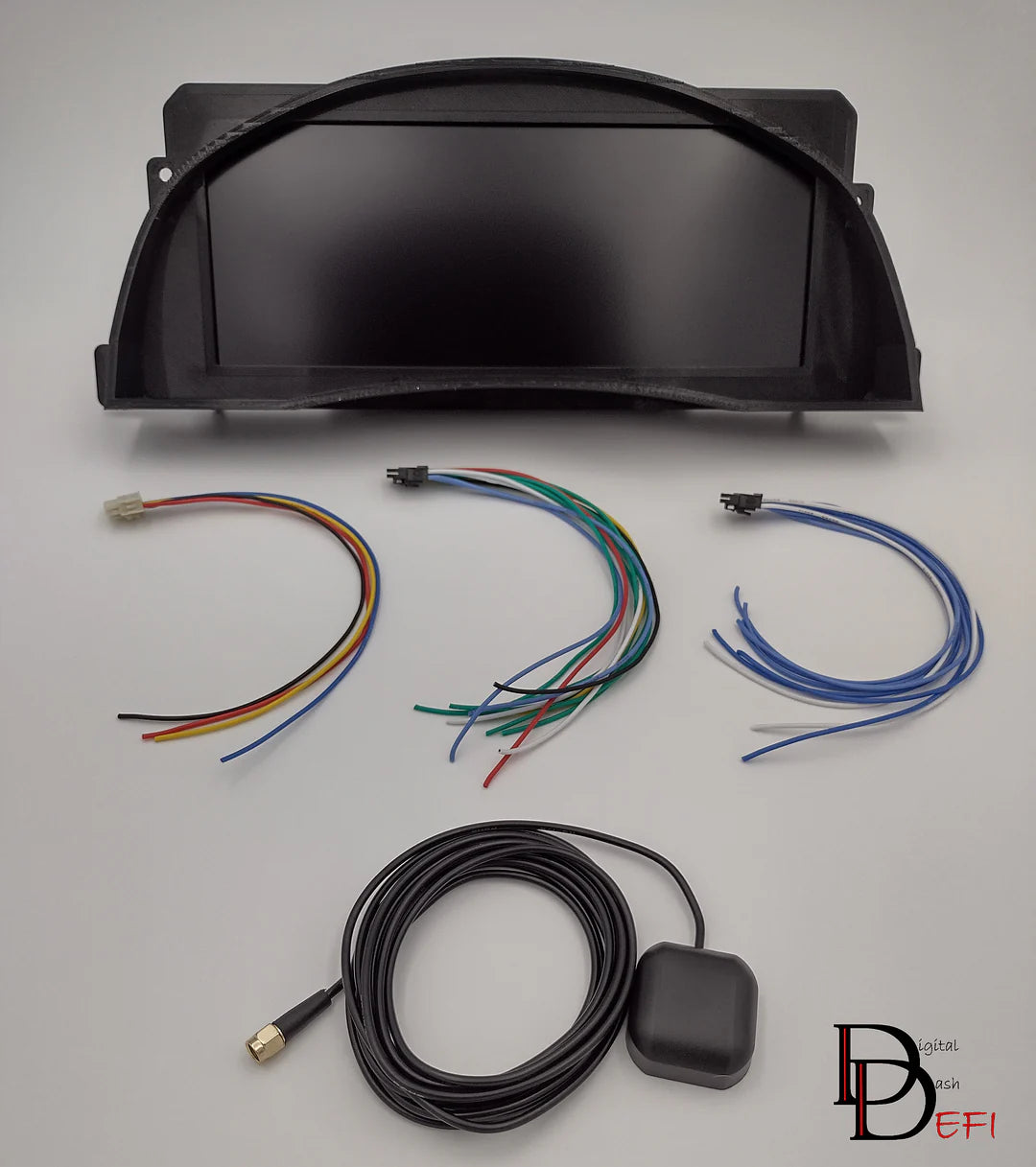

What's Included
-
DD-EFI Digital Dash
- 12.3" Full Color LCD Screen
- Internal GPS
- 32GB Internal Storage
- Internal I/O Module
- (7) Digital Inputs
- (5) Analog Inputs
- (1) Fuel Level Input
- (2) PWM Outputs
- Power Supply Connector:
- Red - 12V Battery
- Black - Ground
- Yellow - 12V Ignition (Switched)
- Blue - Door/Dome Light Trigger (Optional 12V+)
- CanBus - H/L to MS ECU
- Pre-Installed Software
- TunerStudio
- MegaLogViewer
- Any Desk
Plug and Play Features
- CanBus Communcation to your MS ECU
- Internal I/O Module
- (7) Digital Inputs
- (5) Analog Inputs
- (1) Fuel Level Input
- (2) PWM Outputs
- Built-in & Customizable Splash Screen
- In-Dash Tuning Capabilities - Full Version of Tunerstudio
- Customizable Dashboards
- Internal GPS Module for Vehicle Speed, but also:
- Latitude & Longitude
- Fuel Economy
- Odometer
- Trip Meter
- Automatic Datalog Recording:
- 32GB Internal Storage
- Automatically stops datalog and saves your projects tune file
- Sleep Mode
- Hibernates after Ignition is removed
- Shutdown preset to 60 minutes after Ignition remains off
- User configurable shutdown timing
